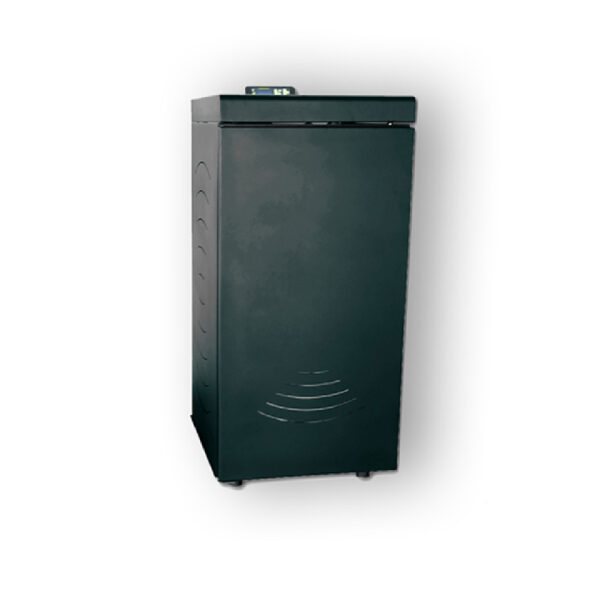

SR-W35

  • Description
  • Inquiry
Model
SR-W35
Dimension(W*H*D)
MM
1110*600*530
43.72″*23.63″*20.87″
Weight
KG
125.0
275.6 lbs
N.W/ G.W.
KG
125/140
Air inlet Pipe
MM
48
1.89″
Air outlet Pipe
MM
80
3.15″
Heating Area
M2
130
1400.0 sq.ft
Automatic Burning Time(Min-Max)
H
13-27
Consumption for Pellet(Min-Max)
KG/H
0.8-1.8
Efficiency
%
92.0
Hopper Capacity
KG
22.0
48.5 lbs
Electronic Consumption
W/H
100-400
Rating Voltage and Frequency
V/HZ
230/50
Rating Power
KW
35
Water tank Capacity
L
25.0
Max water pressure
Bar
1.5
Rating Power Air Output
KW
None
Rating Power Water Output
KW
18
Certificates
TUV/CE
TUV/CE
Fuel
Wood pellets
Export carton size(L/W/H)
MM
785*705*1465
30.92″*27.77″*57.7″
QTY/20″/40″/40HC
PCS
24/45/45
Warranty
YEAR
2
